Lifting An Xc70


This topic has been archived. This means that you cannot reply to this topic.
17 replies to this topic

#1 gotboost

gotboost

    Level 2 Member

  • Supporting Member
  • 690 posts

Posted 06 January 2010 - 04:10 AM

So I'm debating lifting my '98 XC70 about 1-1.5". Reason is two-fold. First...because I think it would look badass. Second...because with my 205/16/60 tires mounted I was getting some rubbing over the bumps with 5 people in the car. It'd be nice to not have that happen.

Here's what I'm thinking at this point:

Rear: Use some spacers similar to what people are using to lower their AWD cars by tricking the Nivos, but put them on the top side of the stock mount rather than beneath it.

Front: Less sure here what to do, but I'm thinking if I have a 1-1.5" spacer machined that I can bolt to the three upper strut mount studs that also has three studs with the exact same spacing, I could just use it the same way people use thicker wheel spacers or wheel adapters. This would allow the car to maintain the factory suspension travel and I would think feel completely stock...at least when going straight. Might need some camber adjustment bolts depending on how far out of whack it sets the camber.

Any thoughts or concerns about this plan?

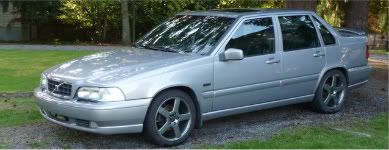

1998 S70 T5 SE 5-speed: Angled flange 18T, RICA tune, 3" DP, 2.5" Exhaust, R Manifold, IPD HD TCV, MSD coil, Turboxs BOV, Eurosport Intake, 2.75" Sconeman MAF-turbo pipe, Stylin' Motors hoses, 850R clutch, Sconeman short shift kit, IPD 25/28mm Sways, IPD HD endlinks, H&R springs, Koni Yellows, IPD poly mounts, OMP Strut Brace, HID E-codes and HID fogs, E-code turn signals, XC70 grill, CF OEM valve cover, CF throttle cover, Polished intake manifold, UK-spec S70R cluster, '04+ V70R steering wheel, V70R seats, Blue LED dash lights, 302mm Zimmerman cross-drilled front rotors, Brembo cross-drilled/slotted rear rotors, IPD SS Brake lines, PBR Ultimate Ceramic brake pads F&R, Kevlar timing belt

Posted Image

And Now: 1998 V70XC: EST intake, EST RIP kit, MSD coil, Inmotion tune, IPD poly mounts, 17" Titans, 302mm brakes, E-codes, Hella 500s, V90 rear wiper.



#2 andyb5

andyb5

    Huge bag of dicks

  • Lifetime Supporter
  • 4,119 posts

Posted 06 January 2010 - 04:14 AM

Sounds like a really cool idea, should look bad@ss
Good luck!

#3 sconeman

sconeman

    Level 4 Member

  • Vendor
  • 4,467 posts

Posted 06 January 2010 - 04:18 AM

So I'm debating lifting my '98 XC70 about 1-1.5". Reason is two-fold. First...because I think it would look badass. Second...because with my 205/16/60 tires mounted I was getting some rubbing over the bumps with 5 people in the car. It'd be nice to not have that happen.

Here's what I'm thinking at this point:

Rear: Use some spacers similar to what people are using to lower their AWD cars by tricking the Nivos, but put them on the top side of the stock mount rather than beneath it.

Front: Less sure here what to do, but I'm thinking if I have a 1-1.5" spacer machined that I can bolt to the three upper strut mount studs that also has three studs with the exact same spacing, I could just use it the same way people use thicker wheel spacers or wheel adapters. This would allow the car to maintain the factory suspension travel and I would think feel completely stock...at least when going straight. Might need some camber adjustment bolts depending on how far out of whack it sets the camber.

Any thoughts or concerns about this plan?

would be interesting to see. I've wondered about putting spacers on the mounts too, seems like it would work except you'll be extending the shock out and may loose some control same as if you did it to a truck with stock shocks.

Edited by sconeman, 06 January 2010 - 04:18 AM.


#4 gotboost

gotboost

    Level 2 Member

  • Supporting Member
  • 690 posts

Posted 06 January 2010 - 04:22 AM

would be interesting to see. I've wondered about putting spacers on the mounts too, seems like it would work except you'll be extending the shock out and may loose some control same as if you did it to a truck with stock shocks.


I don't think the front strut would know any different, because the spacer would be mounted on top of the strut mount. I would think the strut would essentially have the same amount of travel and be at the same extension when sitting on the ground. Maybe I'm not following what you're saying though.
1998 S70 T5 SE 5-speed: Angled flange 18T, RICA tune, 3" DP, 2.5" Exhaust, R Manifold, IPD HD TCV, MSD coil, Turboxs BOV, Eurosport Intake, 2.75" Sconeman MAF-turbo pipe, Stylin' Motors hoses, 850R clutch, Sconeman short shift kit, IPD 25/28mm Sways, IPD HD endlinks, H&R springs, Koni Yellows, IPD poly mounts, OMP Strut Brace, HID E-codes and HID fogs, E-code turn signals, XC70 grill, CF OEM valve cover, CF throttle cover, Polished intake manifold, UK-spec S70R cluster, '04+ V70R steering wheel, V70R seats, Blue LED dash lights, 302mm Zimmerman cross-drilled front rotors, Brembo cross-drilled/slotted rear rotors, IPD SS Brake lines, PBR Ultimate Ceramic brake pads F&R, Kevlar timing belt

Posted Image

And Now: 1998 V70XC: EST intake, EST RIP kit, MSD coil, Inmotion tune, IPD poly mounts, 17" Titans, 302mm brakes, E-codes, Hella 500s, V90 rear wiper.

#5 Hanks

Hanks

    Level 4 Member

  • Supporting Member
  • 3,529 posts

Posted 06 January 2010 - 04:50 AM

too much space up front you will have axle issues... just like if you lower the car too much. get some fatty sways if you are going to raise it to help with stability.

-Kevin-

2004 V70R AWD: 3 angle valve job, Phuzzy FMIC, IPD Neutral rear sway

White '96 850 T5M:Black '94 850 T5

Volvospeed Useful Threads For Repairs

VS Docs now live


#6 gotboost

gotboost

    Level 2 Member

  • Supporting Member
  • 690 posts

Posted 06 January 2010 - 04:55 AM

too much space up front you will have axle issues... just like if you lower the car too much. get some fatty sways if you are going to raise it to help with stability.


I agree. I think it should be ok if I only do 1-1.5" though...especially if I just do an inch. I can't imagine that would cause too extreme of an angle. Now I just need to find someone that can machine the front spacers. :D

As far as the sways go, I don't want to loose too much of the independence in the suspension. But I don't want to feel like I'm going to fall out the window going around turns either. Anybody know if the R's had thicker sway bars than the XC's?
1998 S70 T5 SE 5-speed: Angled flange 18T, RICA tune, 3" DP, 2.5" Exhaust, R Manifold, IPD HD TCV, MSD coil, Turboxs BOV, Eurosport Intake, 2.75" Sconeman MAF-turbo pipe, Stylin' Motors hoses, 850R clutch, Sconeman short shift kit, IPD 25/28mm Sways, IPD HD endlinks, H&R springs, Koni Yellows, IPD poly mounts, OMP Strut Brace, HID E-codes and HID fogs, E-code turn signals, XC70 grill, CF OEM valve cover, CF throttle cover, Polished intake manifold, UK-spec S70R cluster, '04+ V70R steering wheel, V70R seats, Blue LED dash lights, 302mm Zimmerman cross-drilled front rotors, Brembo cross-drilled/slotted rear rotors, IPD SS Brake lines, PBR Ultimate Ceramic brake pads F&R, Kevlar timing belt

Posted Image

And Now: 1998 V70XC: EST intake, EST RIP kit, MSD coil, Inmotion tune, IPD poly mounts, 17" Titans, 302mm brakes, E-codes, Hella 500s, V90 rear wiper.

#7 andyb5

andyb5

    Huge bag of dicks

  • Lifetime Supporter
  • 4,119 posts

Posted 06 January 2010 - 05:20 AM

As far as the sways go, I don't want to loose too much of the independence in the suspension. But I don't want to feel like I'm going to fall out the window going around turns either. Anybody know if the R's had thicker sway bars than the XC's?


I'm almost positive the R and XC have the same sways, but I'm not quite sure. Either way, IPD bars would be a good option

#8 gotboost

gotboost

    Level 2 Member

  • Supporting Member
  • 690 posts

Posted 06 January 2010 - 05:28 AM

Cool. Just PM'd Dongle and he's making me a set of 1.5" spacers for the rear. If anybody owns a machine shop or knows somebody that could make some spacers for the front, please PM me. Otherwise I'm going to have to start making calls to some local shops.
1998 S70 T5 SE 5-speed: Angled flange 18T, RICA tune, 3" DP, 2.5" Exhaust, R Manifold, IPD HD TCV, MSD coil, Turboxs BOV, Eurosport Intake, 2.75" Sconeman MAF-turbo pipe, Stylin' Motors hoses, 850R clutch, Sconeman short shift kit, IPD 25/28mm Sways, IPD HD endlinks, H&R springs, Koni Yellows, IPD poly mounts, OMP Strut Brace, HID E-codes and HID fogs, E-code turn signals, XC70 grill, CF OEM valve cover, CF throttle cover, Polished intake manifold, UK-spec S70R cluster, '04+ V70R steering wheel, V70R seats, Blue LED dash lights, 302mm Zimmerman cross-drilled front rotors, Brembo cross-drilled/slotted rear rotors, IPD SS Brake lines, PBR Ultimate Ceramic brake pads F&R, Kevlar timing belt

Posted Image

And Now: 1998 V70XC: EST intake, EST RIP kit, MSD coil, Inmotion tune, IPD poly mounts, 17" Titans, 302mm brakes, E-codes, Hella 500s, V90 rear wiper.

#9 Ipd

Ipd

    Mr. IPD

  • Validating
  • PipPipPip
  • 1,562 posts

Posted 06 January 2010 - 06:36 AM

A couple of years ago I was part of a project where we lifted a p2 XC70 11"
4" of static lift and 7" of bags.

Looking back on that project and considering what you are looking at I would suggest making spacers for everywhere the suspension touches the chassis similar to what we did on the project car.
This provides the best in ride quality and suspension geometry.

So spacers would be needed at the four front subframe bushings and the rear four subframe bushings.
You'll need to space out the center bearing on the driveshaft to keep the working angles correct.
Extend the steering column to account for the front subframe drop.
Coolant lines and wiring harness should handle 1-1.5 inch drop without modification.
Space off the front and rear strut mounts to the body, simple stantion spacers should do it.
Will need some slight adjustment to the exhaust but it's minor for a lift under 2 inches.
You'll need to adjust the intercooler plumbing as the engine will end up lower since it rests on the subframe which will be lowered.
As I recall both the brake lines and the e-brake lines will flex enough to account for the lift.

Might be other stuff I'm forgetting but it seems like an eternity ago we did this so my memory is a bit foggy.

#10 lookforjoe

lookforjoe

    Let me show you why you're wrong

  • Lifetime Supporter
  • 11,076 posts

Posted 06 January 2010 - 01:18 PM

Cool. Just PM'd Dongle and he's making me a set of 1.5" spacers for the rear. If anybody owns a machine shop or knows somebody that could make some spacers for the front, please PM me. Otherwise I'm going to have to start making calls to some local shops.


Problem with that is the rear spacers already go ON TOP of the lower shock mounts to LOWER the car :D


1998 V70 XR M66 Quaife 14J PTE6262 BB Built '04 2.3l Block Wiseco Pistons 147mm H-Beams '03 Ported Head EnemY21Cams TurboTuner 1175cc Inj, DW300, 3" DP back Dual Magnaflow 14834's Jul 2013 446WHP AWD (@ 21psi / 7795rpm) 347WTq(@4400rpm)@18psi LGSpeed Header Custom Intake Manifold 30x12.5x3.5"Treadstone FMIC AP Racing Clutch KU SM Billet Flywheel Kaplhenke CoilOvers


#11 gotboost

gotboost

    Level 2 Member

  • Supporting Member
  • 690 posts

Posted 06 January 2010 - 03:37 PM

Problem with that is the rear spacers already go ON TOP of the lower shock mounts to LOWER the car :D


That doesn't make sense. The Nivomats want to always basically be extended to a predetermined length. If you raise the lower mounting point, the nivos will still try to find their equilibrium and push the body of the car up higher. All the pics of the lowering spacers show them mounted beneath the stock shock mounts.
1998 S70 T5 SE 5-speed: Angled flange 18T, RICA tune, 3" DP, 2.5" Exhaust, R Manifold, IPD HD TCV, MSD coil, Turboxs BOV, Eurosport Intake, 2.75" Sconeman MAF-turbo pipe, Stylin' Motors hoses, 850R clutch, Sconeman short shift kit, IPD 25/28mm Sways, IPD HD endlinks, H&R springs, Koni Yellows, IPD poly mounts, OMP Strut Brace, HID E-codes and HID fogs, E-code turn signals, XC70 grill, CF OEM valve cover, CF throttle cover, Polished intake manifold, UK-spec S70R cluster, '04+ V70R steering wheel, V70R seats, Blue LED dash lights, 302mm Zimmerman cross-drilled front rotors, Brembo cross-drilled/slotted rear rotors, IPD SS Brake lines, PBR Ultimate Ceramic brake pads F&R, Kevlar timing belt

Posted Image

And Now: 1998 V70XC: EST intake, EST RIP kit, MSD coil, Inmotion tune, IPD poly mounts, 17" Titans, 302mm brakes, E-codes, Hella 500s, V90 rear wiper.

#12 lookforjoe

lookforjoe

    Let me show you why you're wrong

  • Lifetime Supporter
  • 11,076 posts

Posted 06 January 2010 - 03:55 PM

That doesn't make sense. The Nivomats want to always basically be extended to a predetermined length. If you raise the lower mounting point, the nivos will still try to find their equilibrium and push the body of the car up higher. All the pics of the lowering spacers show them mounted beneath on top of the stock shock mounts.



Exactly, and corrected. The lower nivo mount is underneath the control arm. You would need to move the nivomat to the topside of the control arm, thereby causing the extension to push the arm away, raising the car. Adding spacers between the mount& the arm has the effect of pulling the arm UP, which lowers the car. Trust me, I've done this with my TME springs & foolers.


1998 V70 XR M66 Quaife 14J PTE6262 BB Built '04 2.3l Block Wiseco Pistons 147mm H-Beams '03 Ported Head EnemY21Cams TurboTuner 1175cc Inj, DW300, 3" DP back Dual Magnaflow 14834's Jul 2013 446WHP AWD (@ 21psi / 7795rpm) 347WTq(@4400rpm)@18psi LGSpeed Header Custom Intake Manifold 30x12.5x3.5"Treadstone FMIC AP Racing Clutch KU SM Billet Flywheel Kaplhenke CoilOvers


#13 socal850tuner

socal850tuner

    Level 3 Member

  • Members
  • PipPipPip
  • 1,238 posts

Posted 06 January 2010 - 07:32 PM

in order to maintain usable geometry longer lower control are will be needed in the front. Also as mentioned longer axles. PM me if u want I have a good deal of Off-road exprience (crew chief for a SCORE class 9 buggy, and pit crew for a class 16). It will not be as simple as using spacers if you want to be able to fully take advantage of the lift, even just an inch and a half.
'97 850 T5; K&N cone filter, IPD Sway Bars, Powerslot Slotted Discs, Strut Brace, IPD Poly upper engine mount, Voodoo mbc, MSD Blaster SS, Magnecor Spark plug Wires, Autometer Boost gauge on A-pillar, Pioneer Head unit, pioneer 5 1/4" up front and pioneer 6"x9" in the back, Rockford 450w amp, ~600 MTX 10" Sub, pioneer back door speakers, and 3.5"clarions in the dash


projects: Porsche 2.8 race, Porsche 2.0 race(complete), Porsche 3.2 street (complete), Porsche 3.4TT street(complete), Porsche 3.0 street (complete), Porsche 3L twin-plugged carbed street rocket(complete)

2K Motorsports

#14 gotboost

gotboost

    Level 2 Member

  • Supporting Member
  • 690 posts

Posted 07 January 2010 - 03:33 AM

in order to maintain usable geometry longer lower control are will be needed in the front. Also as mentioned longer axles. PM me if u want I have a good deal of Off-road exprience (crew chief for a SCORE class 9 buggy, and pit crew for a class 16). It will not be as simple as using spacers if you want to be able to fully take advantage of the lift, even just an inch and a half.


Would the longer lower control arms be necessary if I also installed spacers between the body and the front and rear subframes as Lucky said above? It seems that would line everything back up.
1998 S70 T5 SE 5-speed: Angled flange 18T, RICA tune, 3" DP, 2.5" Exhaust, R Manifold, IPD HD TCV, MSD coil, Turboxs BOV, Eurosport Intake, 2.75" Sconeman MAF-turbo pipe, Stylin' Motors hoses, 850R clutch, Sconeman short shift kit, IPD 25/28mm Sways, IPD HD endlinks, H&R springs, Koni Yellows, IPD poly mounts, OMP Strut Brace, HID E-codes and HID fogs, E-code turn signals, XC70 grill, CF OEM valve cover, CF throttle cover, Polished intake manifold, UK-spec S70R cluster, '04+ V70R steering wheel, V70R seats, Blue LED dash lights, 302mm Zimmerman cross-drilled front rotors, Brembo cross-drilled/slotted rear rotors, IPD SS Brake lines, PBR Ultimate Ceramic brake pads F&R, Kevlar timing belt

Posted Image

And Now: 1998 V70XC: EST intake, EST RIP kit, MSD coil, Inmotion tune, IPD poly mounts, 17" Titans, 302mm brakes, E-codes, Hella 500s, V90 rear wiper.

#15 Ipd

Ipd

    Mr. IPD

  • Validating
  • PipPipPip
  • 1,562 posts

Posted 07 January 2010 - 03:35 AM

You're correct, no length change required if you space off all body to suspension connection points. A bit more work though.
If I ever get my hands on another XC70 I might just build another lift for it and send the wife off to the grocery store :lol:

#16 gotboost

gotboost

    Level 2 Member

  • Supporting Member
  • 690 posts

Posted 07 January 2010 - 03:38 AM

You're correct, no length change required if you space off all body to suspension connection points. A bit more work though.
If I ever get my hands on another XC70 I might just build another lift for it and send the wife off to the grocery store :lol:


Cool. Thanks for the clarification Lucky. So what exactly did you end up doing for the front upper strut mounts on the car you did?
1998 S70 T5 SE 5-speed: Angled flange 18T, RICA tune, 3" DP, 2.5" Exhaust, R Manifold, IPD HD TCV, MSD coil, Turboxs BOV, Eurosport Intake, 2.75" Sconeman MAF-turbo pipe, Stylin' Motors hoses, 850R clutch, Sconeman short shift kit, IPD 25/28mm Sways, IPD HD endlinks, H&R springs, Koni Yellows, IPD poly mounts, OMP Strut Brace, HID E-codes and HID fogs, E-code turn signals, XC70 grill, CF OEM valve cover, CF throttle cover, Polished intake manifold, UK-spec S70R cluster, '04+ V70R steering wheel, V70R seats, Blue LED dash lights, 302mm Zimmerman cross-drilled front rotors, Brembo cross-drilled/slotted rear rotors, IPD SS Brake lines, PBR Ultimate Ceramic brake pads F&R, Kevlar timing belt

Posted Image

And Now: 1998 V70XC: EST intake, EST RIP kit, MSD coil, Inmotion tune, IPD poly mounts, 17" Titans, 302mm brakes, E-codes, Hella 500s, V90 rear wiper.

#17 Ipd

Ipd

    Mr. IPD

  • Validating
  • PipPipPip
  • 1,562 posts

Posted 07 January 2010 - 03:44 AM

Had two pieces of steel plate cut that was the same shape as the upper mounting plate on the factory setup.
Then took a 5 inch diameter section of tube and cut a 4 inches peice. Welded the tube between the two laser cut plates and install between body and strut.

#18 gotboost

gotboost

    Level 2 Member

  • Supporting Member
  • 690 posts

Posted 07 January 2010 - 03:48 AM

Had two pieces of steel plate cut that was the same shape as the upper mounting plate on the factory setup.
Then took a 5 inch diameter section of tube and cut a 4 inches peice. Welded the tube between the two laser cut plates and install between body and strut.


Genius...That sounds super simple. Don't have any spares of those laser cut plates around, do ya'?? :D
1998 S70 T5 SE 5-speed: Angled flange 18T, RICA tune, 3" DP, 2.5" Exhaust, R Manifold, IPD HD TCV, MSD coil, Turboxs BOV, Eurosport Intake, 2.75" Sconeman MAF-turbo pipe, Stylin' Motors hoses, 850R clutch, Sconeman short shift kit, IPD 25/28mm Sways, IPD HD endlinks, H&R springs, Koni Yellows, IPD poly mounts, OMP Strut Brace, HID E-codes and HID fogs, E-code turn signals, XC70 grill, CF OEM valve cover, CF throttle cover, Polished intake manifold, UK-spec S70R cluster, '04+ V70R steering wheel, V70R seats, Blue LED dash lights, 302mm Zimmerman cross-drilled front rotors, Brembo cross-drilled/slotted rear rotors, IPD SS Brake lines, PBR Ultimate Ceramic brake pads F&R, Kevlar timing belt

Posted Image

And Now: 1998 V70XC: EST intake, EST RIP kit, MSD coil, Inmotion tune, IPD poly mounts, 17" Titans, 302mm brakes, E-codes, Hella 500s, V90 rear wiper.
