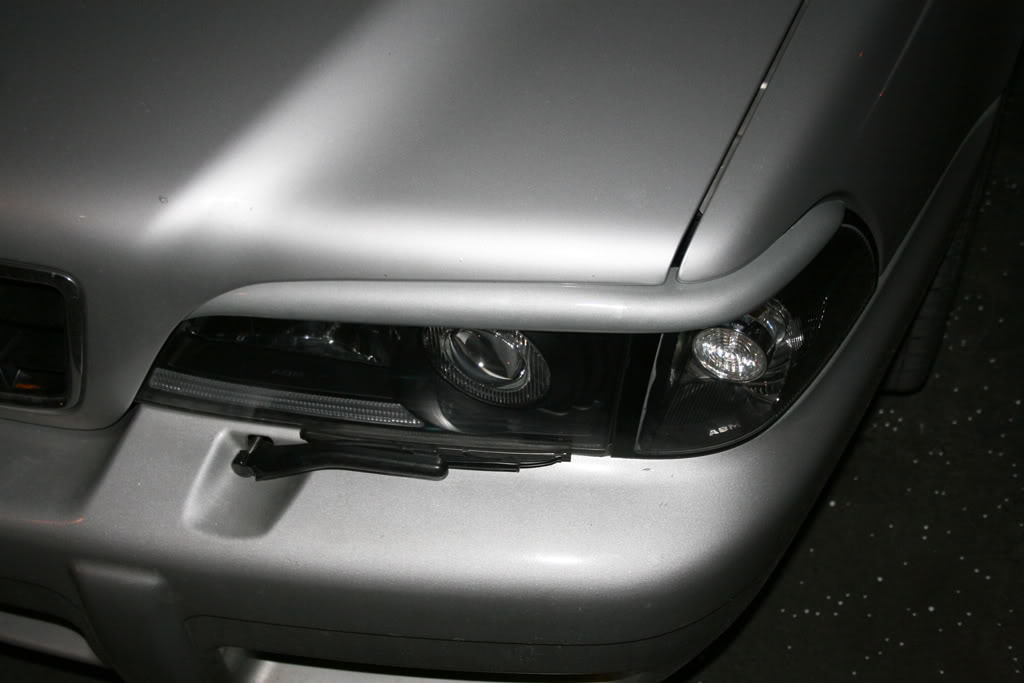

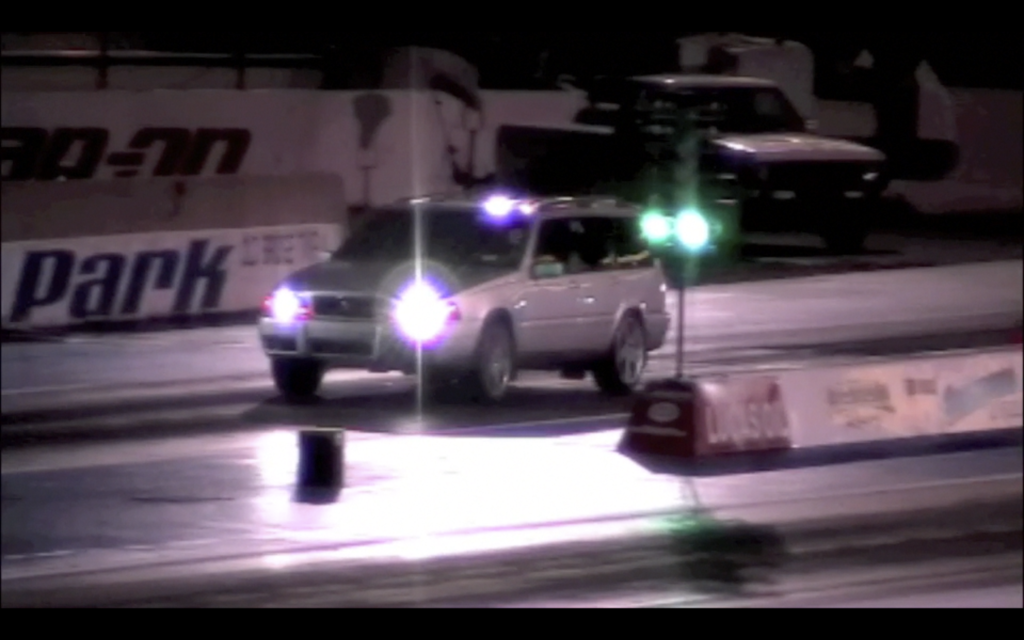

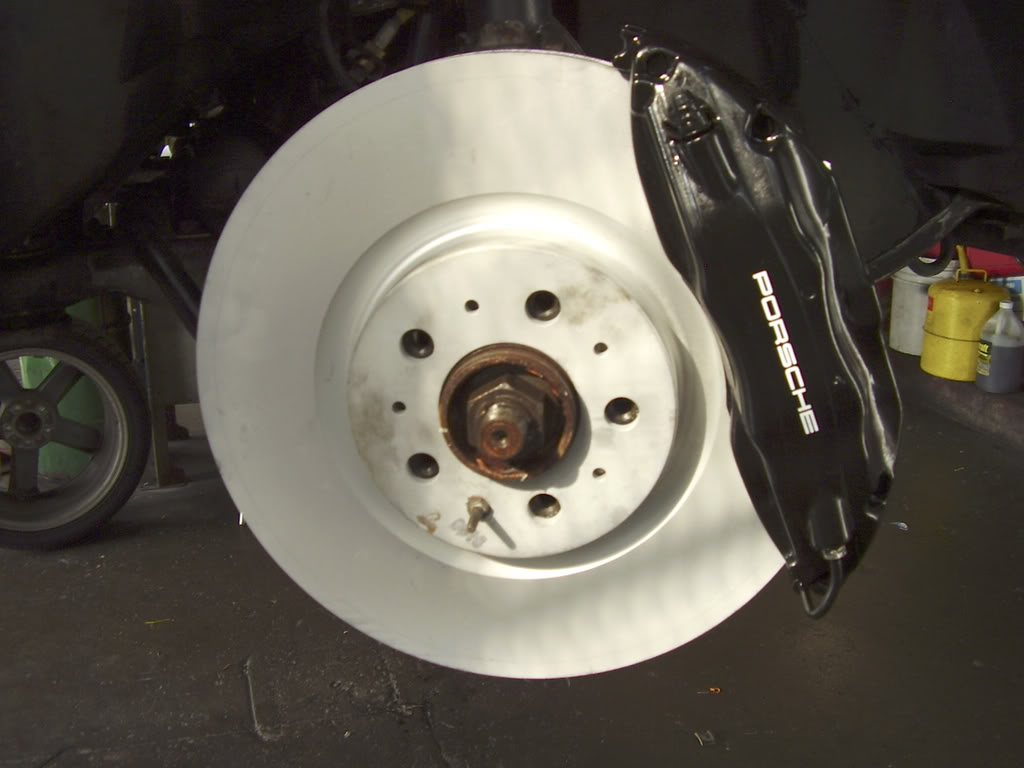

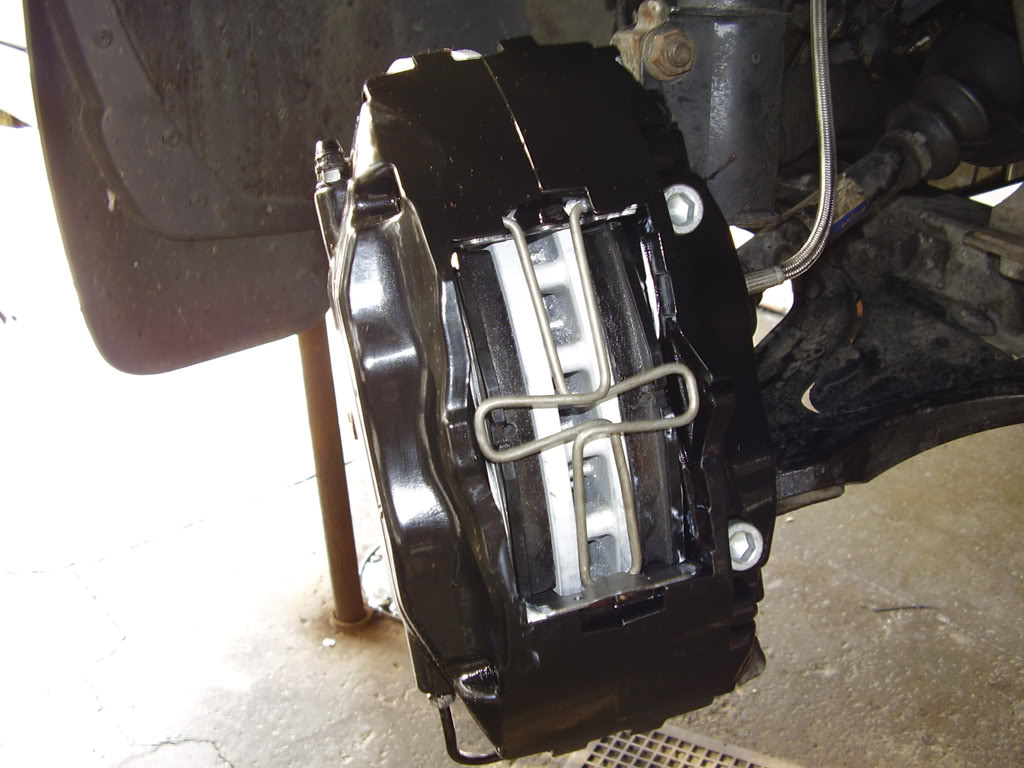

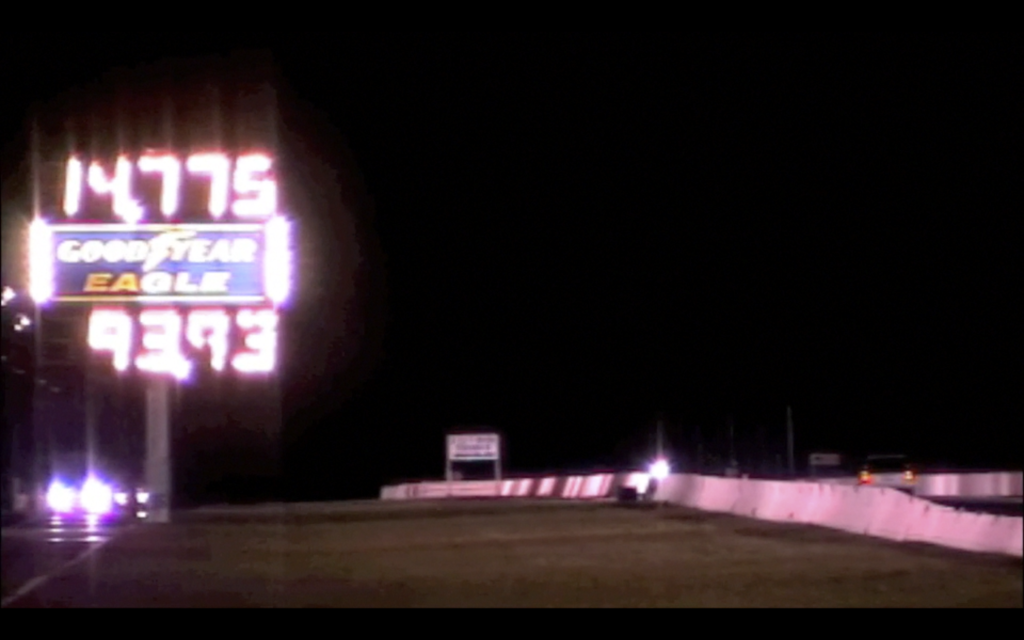

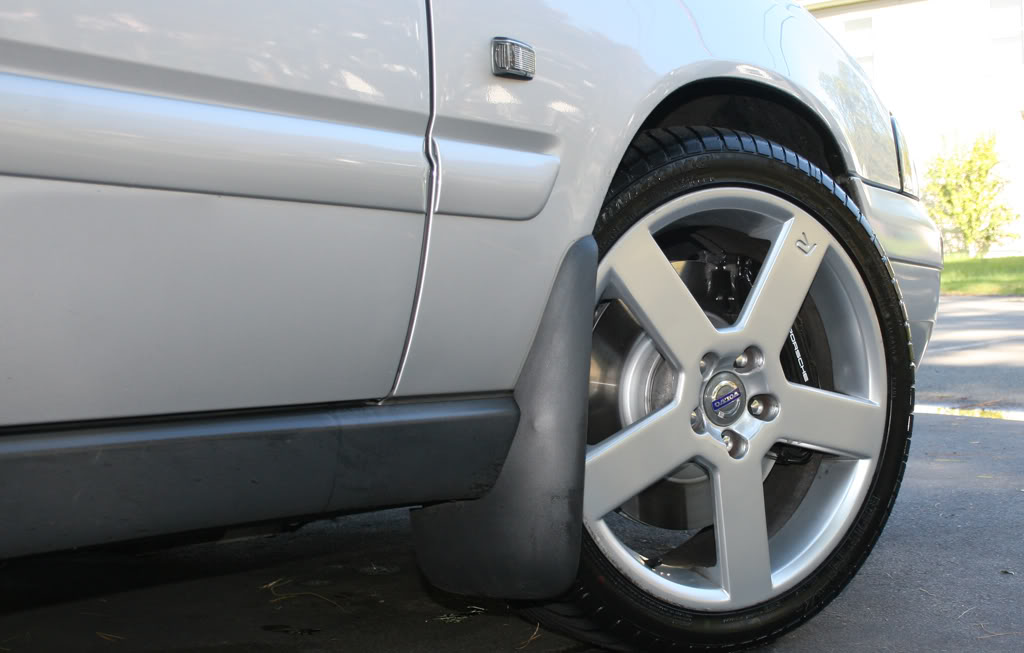

lookforjoe Posted March 13, 2009 Report Share Posted March 13, 2009 I'm gonna put all my build mods in one thread - hard to keep track of all the separate closed threads.. The begining - Oct '07 misc stuff first... I'll try to list in chronological order. 17" pegs Rear Spoiler, EST dual exhaust, "cross country" delete.. EST ABM's & SharpHID's lo & fogs "R" door panels Rear seat heaters 20% tint & pillar blackout (3M 73602 3" black tape) poly torque mount & new style firewall mount horn relocate 18" pegs, 302mm brakes Amp & subwoofers Tombone endlinks Bumper, grille paint & new emblem "R" sill plates Tailight tint 1st dyno.. 223WHP/291tq (runfile 238) lower shores performance MBC 3 gauge pod EGT, Boost, Wideband, intake temp IPD BBK Raceway Park > best time (19T - running 15psi (TCV) Eyelids... 1 Quote Link to comment Share on other sites More sharing options...

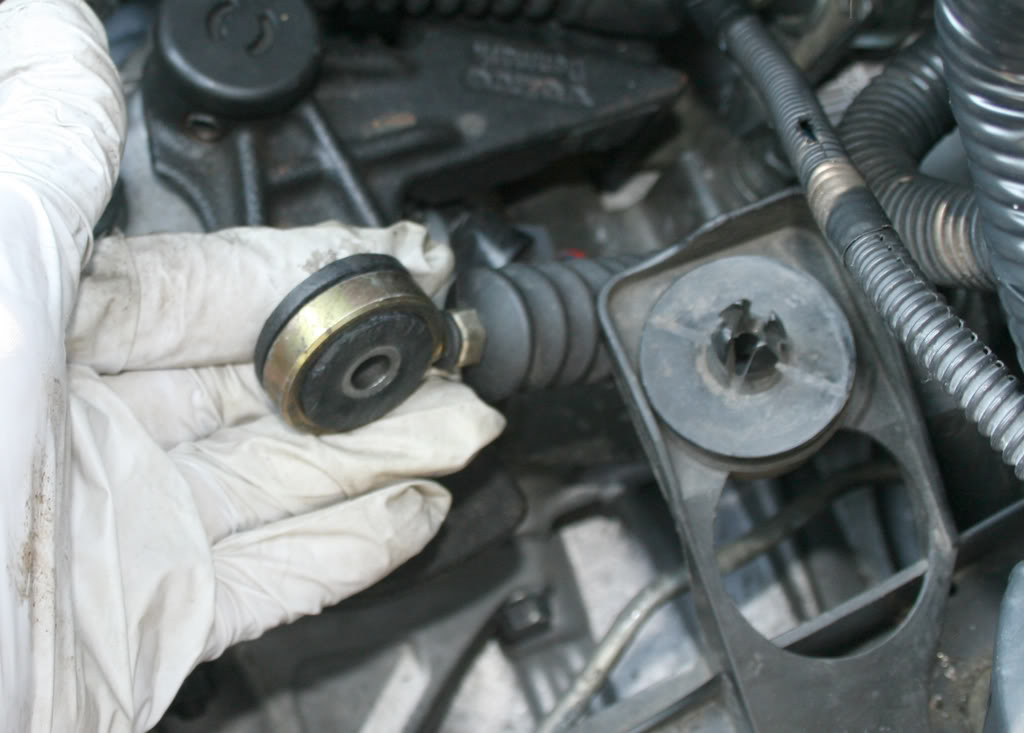

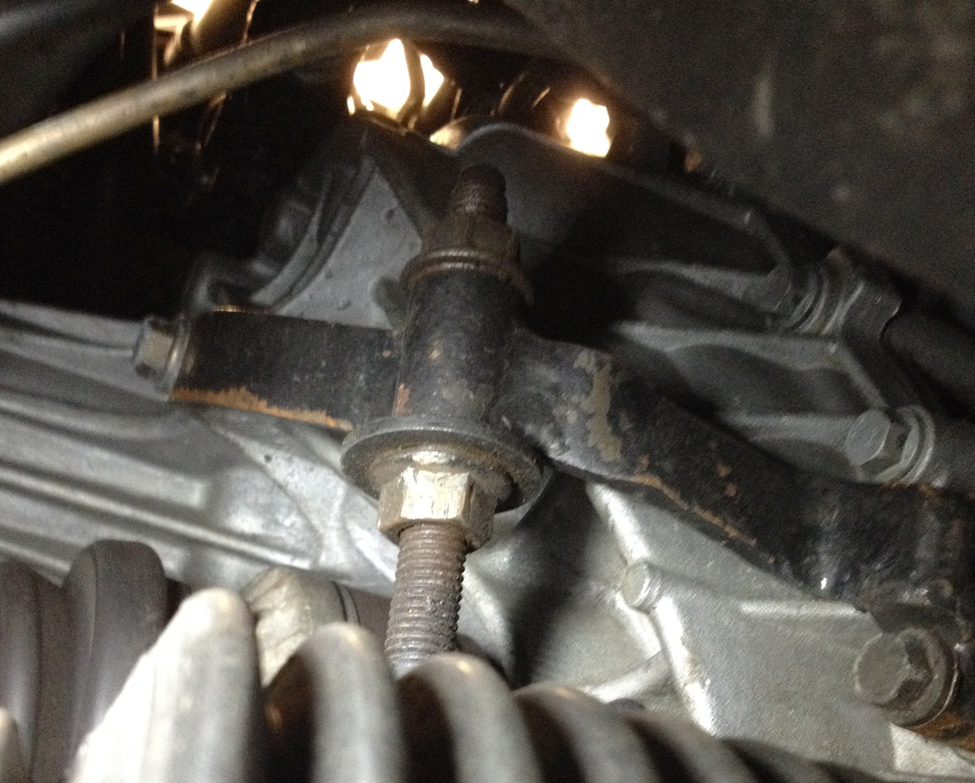

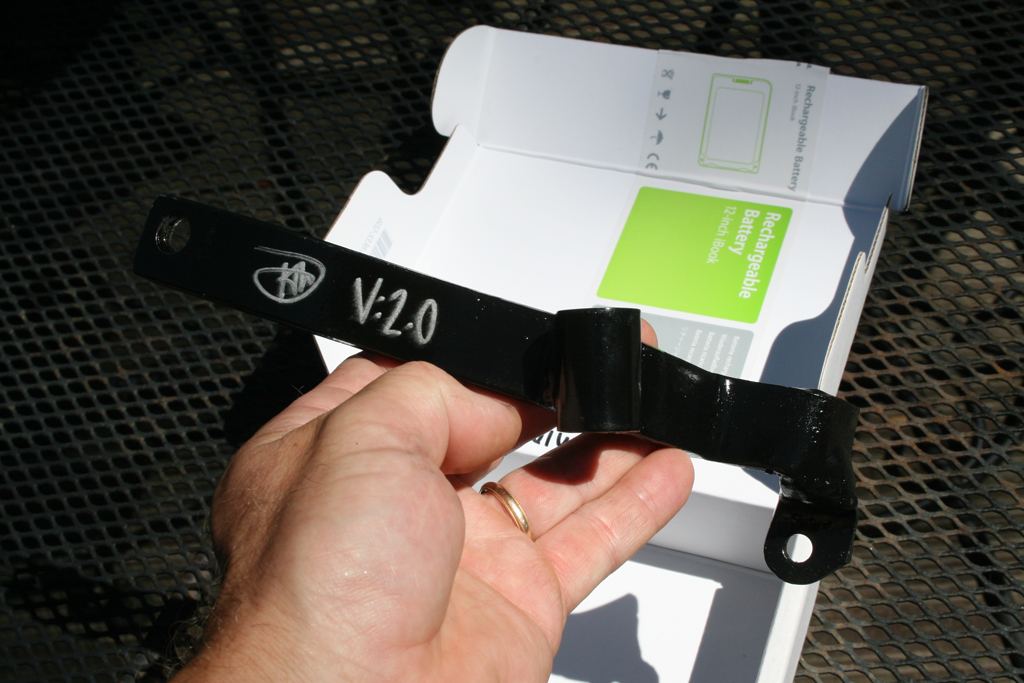

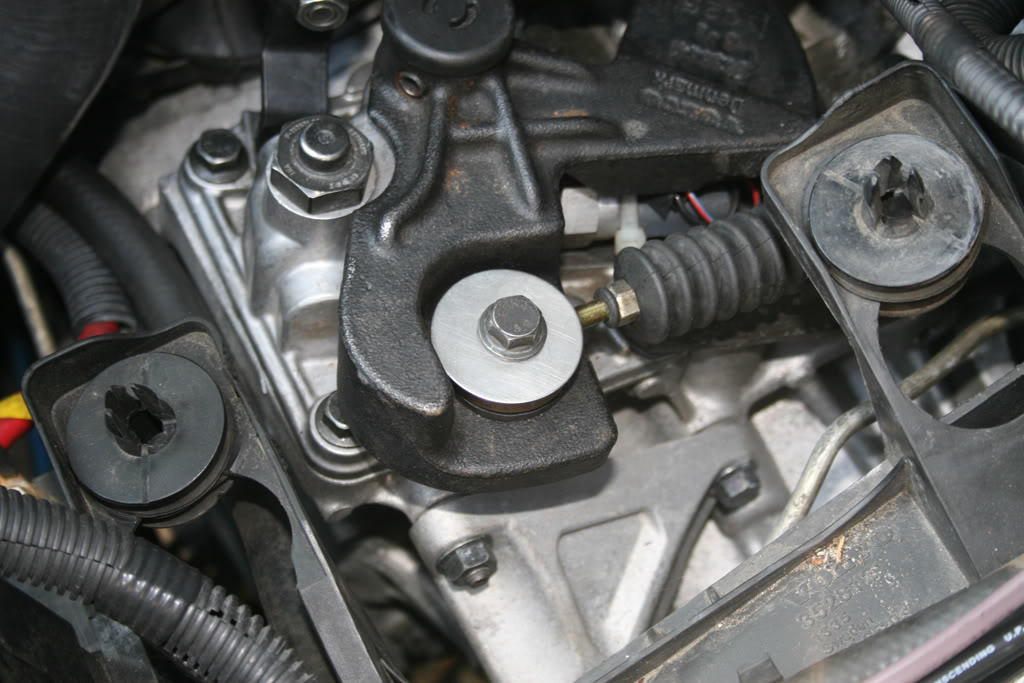

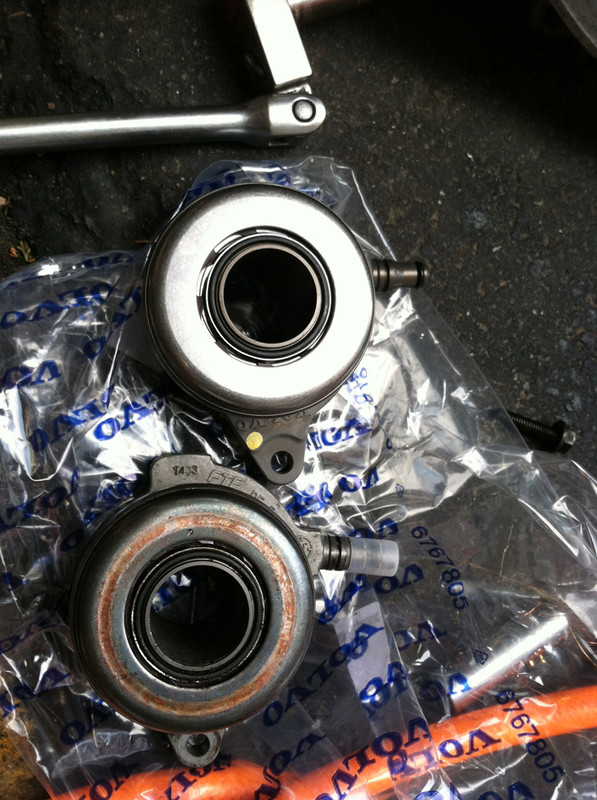

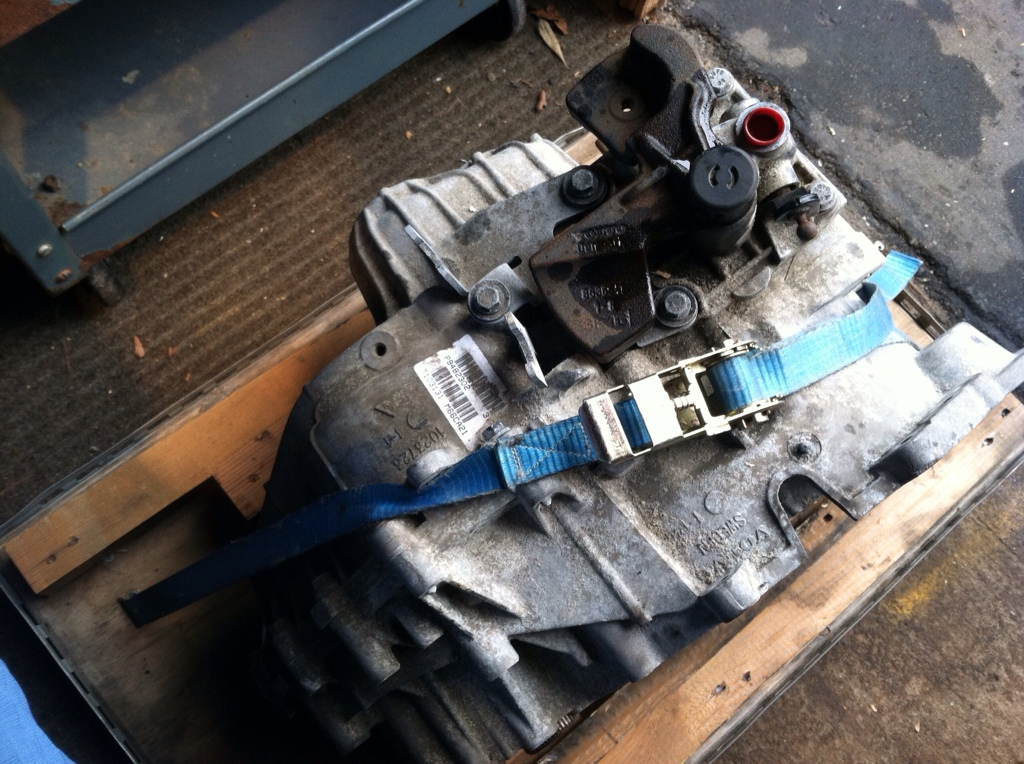

lookforjoe Posted March 13, 2009 Author Report Share Posted March 13, 2009 M66 conversion NOTE: Not all DM Flywheels are the same - you need an S60/V70R DM flywheel for the R clutch to fit. dual mass / S60R clutch 30783258 kit 8636105 T/O -Slave http://i27.photobucket.com/albums/c190/huseinholland/cars%20cats%20houses/V70ManConversion0002.jpg the trans trans bracket mods - prototype revision revised 02/2012 http://i27.photobucket.com/albums/c190/huseinholland/CarMods/M66%20Brackets%20Shifter%20Parts/IMG_0198.jpg revised summer 2012 remove cable pins w/ bolts http://i27.photobucket.com/albums/c190/huseinholland/cars%20cats%20houses/V70ManConversion0009.jpg http://i27.photobucket.com/albums/c190/huseinholland/CarMods/M66%20Brackets%20Shifter%20Parts/V70XCM66linkage.jpg custom left side supprt bracket http://i27.photobucket.com/albums/c190/huseinholland/CarMods/M66%20Brackets%20Shifter%20Parts/IMG_0789.jpg http://i27.photobucket.com/albums/c190/huseinholland/CarMods/M66%20Brackets%20Shifter%20Parts/IMG_0788.jpg bevel gear http://i27.photobucket.com/albums/c190/huseinholland/cars%20cats%20houses/V70ManConversion0006.jpg connecting sleeve http://i27.photobucket.com/albums/c190/huseinholland/cars%20cats%20houses/V70ManConversion0003a.jpg pedals http://i27.photobucket.com/albums/c190/huseinholland/cars%20cats%20houses/V70ManConversion0010.jpg shifter http://i27.photobucket.com/albums/c190/huseinholland/cars%20cats%20houses/V70ManConversion0011.jpg http://i27.photobucket.com/albums/c190/huseinholland/cars%20cats%20houses/V70customShifter0004.jpg http://i27.photobucket.com/albums/c190/huseinholland/cars%20cats%20houses/V70customShifter0007.jpg custom shift bushings.. (vo 1378153, cut down to fit) 1 Quote Link to comment Share on other sites More sharing options...
--Aaron-- Posted March 13, 2009 Report Share Posted March 13, 2009 before and after shots rock! good work, come a long way! oops are we not supposed to post here? Quote Link to comment Share on other sites More sharing options...
T5power Posted March 13, 2009 Report Share Posted March 13, 2009 wow. what a transformation.nice that m666666wo4ntflljsavnljk LUCKY Quote Link to comment Share on other sites More sharing options...
TFIVEM Posted March 13, 2009 Report Share Posted March 13, 2009 love this build, does the top piece of the shift knob come up easy? i might suede wrap mine Quote Link to comment Share on other sites More sharing options...
lookforjoe Posted March 14, 2009 Author Report Share Posted March 14, 2009 T5M Build H-Beam rods, Mahle OS2 pistons, bearing sets, etc... R manifold polish manifold strip & paint engine castings Wiring harness cleaned & auto trans wiring removed assemble... 16T... on the subframe.. in the car.. Quote Link to comment Share on other sites More sharing options...
lookforjoe Posted March 14, 2009 Author Report Share Posted March 14, 2009 19T, custom Down Pipe set to 4psi delco TCV Quote Link to comment Share on other sites More sharing options...
lookforjoe Posted March 14, 2009 Author Report Share Posted March 14, 2009 Custom Intake Cold Air Intake, BOV Quote Link to comment Share on other sites More sharing options...
lookforjoe Posted March 14, 2009 Author Report Share Posted March 14, 2009 SAS delete move cruise vac pump SAS Quote Link to comment Share on other sites More sharing options...
Azn Renegade Posted March 14, 2009 Report Share Posted March 14, 2009 how is the sound quality using the spare tire area for your subs? always thought about doing this...the big box in my trunk ways a ton and takes up too much room for my two 12" subs Quote Link to comment Share on other sites More sharing options...
lookforjoe Posted March 14, 2009 Author Report Share Posted March 14, 2009 FMIC & Catch Can http://i27.photobucket.com/albums/c190/huseinholland/CarMods/Breather%20Modifications/CatchCanInstall0009.jpg http://i27.photobucket.com/albums/c190/huseinholland/CarMods/Breather%20Modifications/CatchCanInstall0011.jpg http://i27.photobucket.com/albums/c190/huseinholland/CarMods/Breather%20Modifications/CatchCanInstall0008.jpg http://i27.photobucket.com/albums/c190/huseinholland/CarMods/IC%20Plumbing/XCv70FMIC0002.jpg battery sideways.. stock tray cut down, new hole drilled in tray to use existing mount points http://i27.photobucket.com/albums/c190/huseinholland/CarMods/IC%20Plumbing/XCv70FMIC0020.jpg harness clearance.. http://i27.photobucket.com/albums/c190/huseinholland/CarMods/IC%20Plumbing/XCv70FMIC0023.jpg http://i27.photobucket.com/albums/c190/huseinholland/CarMods/IC%20Plumbing/XCv70FMIC0014.jpg modified splash pan http://i27.photobucket.com/albums/c190/huseinholland/CarMods/IC%20Plumbing/XCv70FMICsplashPan0002.jpg http://i27.photobucket.com/albums/c190/huseinholland/CarMods/IC%20Plumbing/XCv70FMIC0011.jpg http://i27.photobucket.com/albums/c190/huseinholland/cars%20cats%20houses/XCV70springclean0011.jpg http://i27.photobucket.com/albums/c190/huseinholland/cars%20cats%20houses/XCV70springclean0012.jpg Quote Link to comment Share on other sites More sharing options...
ozzimark Posted March 14, 2009 Report Share Posted March 14, 2009 so much stuff and you haven't even gotten to the 20G yet great picture summary so far though! Quote Link to comment Share on other sites More sharing options...
lookforjoe Posted March 15, 2009 Author Report Share Posted March 15, 2009 Water Injection... aquamist fittings for solenoid home depot 1/4" fittings for Shurflo pump connections fabricate harness aquamist 7mm nozzle aquamist reservoir fitting, aquamist 6mm line 160psi Shurflo pump in frame rail - 1/2" to 1/4" fittings injector solenoid activated indicator Wiring Diagragm Quote Link to comment Share on other sites More sharing options...
Chilled man Posted March 15, 2009 Report Share Posted March 15, 2009 Wow speechless Quote Link to comment Share on other sites More sharing options...
lookforjoe Posted March 15, 2009 Author Report Share Posted March 15, 2009 Ported Intake, 3" TB Quote Link to comment Share on other sites More sharing options...
